COMPAQ SMART 2DH, PCI, WIDE ULTRA, SCSI 3,
16 MB CACHE, RAID ARRAY CONTROLLER

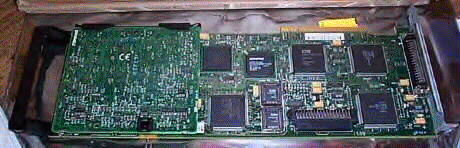

COMPAQ SMART-2DH (2/DH) PCI RAID ARRAY SCSI 16 MB CACHE CONTROLLER
was just pulled from service - great condition -refurbished and has the latest BIOS -- Rev. 4.44. Retails for over 1400.00!!! Guaranteed not DOA. This controller has passed all Compaq diagnostics and has been tested with both an internal and external array. Everything has passed, including the batteries. There are no cables (see OPTIONS below), manuals, or software supplied with this unit. Manuals and Compaq proprietary software are available from Compaq; e.g.,
http://www.compaq.com/support/techpubs/installation_guides/295470-002.html
http://www.compaq.com/support/techpubs/user_reference_guides/295469-002.html
http://www.compaq.com/support/files/server/us/locate/7_448.html
PRODUCT DESCRIPTION
Enhancing its position as the market leader in delivering RAID subsystems into the server market, Compaq increases the performance of its SMART-2 Array Controller by increasing the on-board accelerator cache from 4 MB to 16 MB. When used with Compaq's Wide-Ultra SCSI-3 internal hard drives, the SMART-2 Array Controller can attain maximum transfer rates of up to 40 MB/s per channel, or 80 MB/s total. Server Support for SMART-2 Controllers is supported on the following systems: ProLiant 800, 850, 850R, 1200, 1500, 1600, 1850R, 2500, 3000, 5000, 5500, 6000, 6500, and 7000 (any PCI Compaq Server).
The SMART-2DH Array Controller continues to deliver the data availability and management features required to increase business productivity and lower the customer's total cost of ownership. When used with Compaq's 9.1-GB drives, SMART-2 Array Controller now supports up to 127 GB per controller for a maximum of over 720 GB in a PL5000 server. The SMART-2 Array Controller is based on an Intelligent Architecture which enables truly breakthrough capabilities for managing high performance storage:
On-Line Capacity Expansion: Simplifies storage management by allowing on-line addition of more storage in RAID configurations, eliminating the need to back-up, reconfigure, and restore.
Array Configuration Utility: Graphical user interface, which simplifies array configuration and facilitates on-line capacity expansion.
Array Performance Monitor: Monitors key parameters and provides information for proactive system planning.
TECHNICAL SPECS
SMART-2DH Array Controller Protocol Wide-Ultra SCSI-3
SCSI Electrical Interface Single-ended
Drives Supported Up to 14
Data Transfer Method 32-bit PCI bus-master
Maximum Transfer Rate on PCI Bus (peak) 132 MB/s
Simultaneous Drive Transfer Channels Two
SCSI Bus Termination Required
Total Transfer Rate 80 MB/s (40 MB/s per channel)
Software Upgradeable Firmware Yes
Cache (Read/Write) 16-MB ECC protected cache, removeable with
battery backup
Logical Drives Supported 32
Reliability Features
Distributed Data Guarding (RAID 5)
Data Guarding (RAID 4)
Drive Mirroring (RAID 1)
Drive Striping (RAID 0)
Controller Duplexing Operating System Dependent Automatic Data Recovery
Dimensions Height 3.8 in/9.9 cm. Length 13.75 in/34.9 cm. Thickness (including Array Accelerator) .80 in/1.5 cm.
Temperature Range Operating 50° to 95°F/10° to 36°C. Shipping -22° to 140°F/-30° to 60°C.
Relative Humidity (non-condensing) Operating 20% to 80%. Non-operating 5% to 90% Power Required +5 V/2.6 amp +12 V/20 ms -12 V/20 ms
Heat Dissipated (maximum) 13.5 watts
SCSI Port Connectors (internal and external) 68-pin Wide-Ultra SCSI-3
OPTIONS:
Compaq uses TPO TEFLON STRANDED
FEP TEFLON SOLID is better and faster
20" - PVC GRAY STRANDED - 2 Connectors for hotswap cage = $12.00
20" - TPO TEFLON STRANDED - 2 Connectors for hotswap cage = $14.00
20" - FEP TEFLON SOLID - 2 Connectors for hotswap cage = $18.00
56" - PVC GRAY STRANDED - 8 Connectors for int. 7 drives max = $31.00
56" - TPO TEFLON STRANDED - 8 Connectors for int. 7 drives max = $38.00
56" - FEP TEFLON SOLID - 8 Connectors for int. 7 drives max = $49.00
 COMPAQ SMART 2DH PCI UW SCSI 3 RAID ARRAY CON
COMPAQ SMART ARRAY RAID 2DH PCI UW SCSI 16MB
Guaranteed not DOA - we have sold dozens of these with 100% satisfaction

Click here to read the FINE PRINT


"

Accept all Credit Cards - VISA and M/C preferred - or - PayPal or Billpoint

Buyer pays $15.00 for 2 day shipping and insurance charges in contiguous US.

No foreign bidders please.
